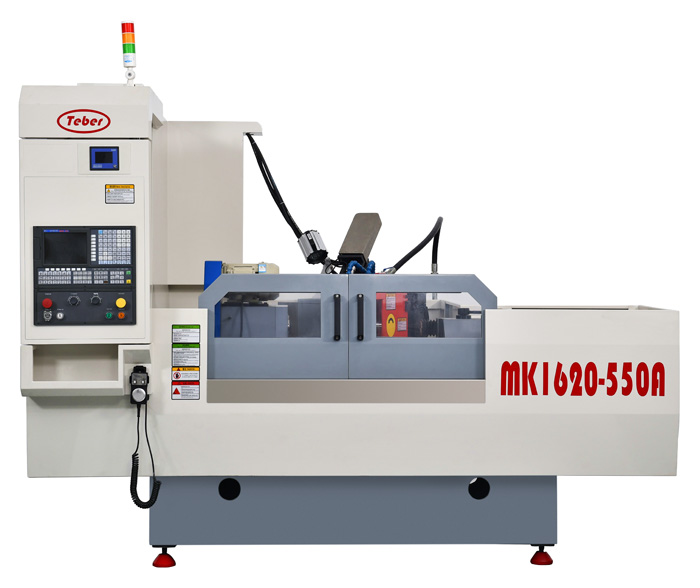

Main functional features:
1. It adopts the special control system of grinding machine, imported high-precision ball screw of two shafts, X-axis inclined angle structure, electronic gear fitting end grinding, imported bearing support; Head rest structure: type A fixed, type B fixed and active; The Z axis guide rail surface of the machine tool is pasted with imported plastic soft belt, the X axis adopts imported precision roller guide rail, and the electrical control is Schneider Electric. The machine tool has the function of automatic correction and compensation of grinding wheel, and is externally connected with 1 μ M-band compensation switch, safety emergency exit protection and other functions.
2. The machine tool has high repeated positioning accuracy, strong grinding stability and low surface roughness value; It is easy to operate, easy to learn and use, and easy to realize automatic processing; Widely applicable to the simultaneous grinding of end face, outer circle or shaped surface and cylindrical conical surface and other cylindrical parts
Pictures Of Processing Parts
Technical Spec
|
技術參數 |
規格 |
|
|
中心高 |
Center high |
135mm |
|
兩頂尖中心距 |
Two top center distance |
550mm |
|
磨削直徑范圍 |
Grinding diameter range |
Ф8~Ф200mm |
|
砂輪尺寸范圍 |
Grinding wheel size range |
Ф400×（25~80）×Ф203mm |
|
砂輪線速度 |
Grinding wheel speed |
≤45m/s （可選≤60m/s、≤90m/s、≤120m/s） |
|
砂輪電機功率 |
Grinding wheel motor power |
4kW |
|
頭架電機功率 |
Head motor power |
400W（節能伺服電機） |
|
工件最大重量 |
Max weight of the workpiece |
≤50kg |
|
工作臺縱向移動量 |
Length of movement of the table |
≥720mm |
|
砂輪架進給速度 |
Grinding wheel feed speed |
0.01~6000mm/min |
|
頭架撥盤轉速(無級變速) |
Head carriage speed（stepless speed) |
0~400r/min |
|
頭架莫氏錐度 |
Head frame Mohs taper |
MT5 |
|
尾架套筒行程 |
Tailstock sleeve travel |
50mm |
|
尾架莫氏錐度 |
Tailstock Mohs taper |
MT4 |
|
工作精度圓度 |
Working accuracy roundness |
≤1.5μm |
|
尺寸一致性 |
Dimensional consistency |
≤3μm/315mm |
|
表面粗糙度 |
Surface roughness |
Ra0.1~0.4μm |
|
X軸重復定位精度 |
X- axis repeat positioning accuracy |
≤1.5μm(50次) |
|
Z軸重復定位精度 |
Z-axis repeat positioning accuracy |
≤2.0μm(50次) |
|
執行標準 |
Implementation of standards |
Q/320281BGF01-2016 GB/T4685-2007 |
|
機床重量 |
Machine weight |
3400kg |
|
機床外形尺寸(L×W×H) |
Machine dimensions(L×W×H) |
2800×1800×2080mm |
|
標準配置Standard Configuration |
||
|
GSK986GS數控磨床系統GSK986GS CNC Grinding Machine System |
||
|
電氣柜熱交換器Electric cabinet heat exchanger |
||
|
磁性過濾冷卻Magnetic fiter cooling |
||
|
中原精密端面對刀儀ZY precision end face knife |
||
|
液壓站及腳踏開關 hydraulic station and foot switch |
||
|
可選配置Optional Configuration |
||
|
FANUC 0i-F/G數控磨床系統FANUC 0i-F /G CNC Grinding Machine System |
||
|
SIEMENS 828D數控磨床系統SIEMENS 828D CNC Grinding Machine System |
||
|
中原精密徑向外圓量儀ZY precision radial excircle meter |
||
|
油霧機 oil mist machine |
||
